Historic roofs often hide structural issues that are invisible to the eye. Modern tools such as infrared scanning and moisture mapping allow inspectors to uncover hidden leaks, heat loss, and trapped moisture without disturbing delicate materials.
These technologies provide accurate, non-invasive insights that help preserve the character and integrity of heritage structures while guiding precise restoration decisions.
What is Infrared Scanning?

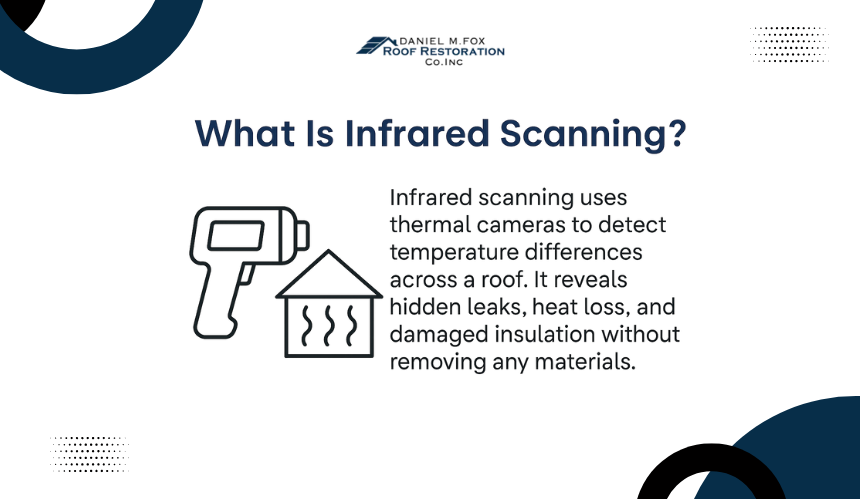

Infrared scanning is a thermal imaging technique that detects temperature differences across a roof’s surface. By using specialized cameras, inspectors can identify warm and cool areas that indicate underlying moisture or insulation gaps.
The infrared scanning method allows professionals to visualize hidden problems such as water infiltration, heat loss, or damaged insulation layers without dismantling the roof. Infrared technology works best during specific weather conditions when thermal contrast is most visible.
What is Moisture Mapping?

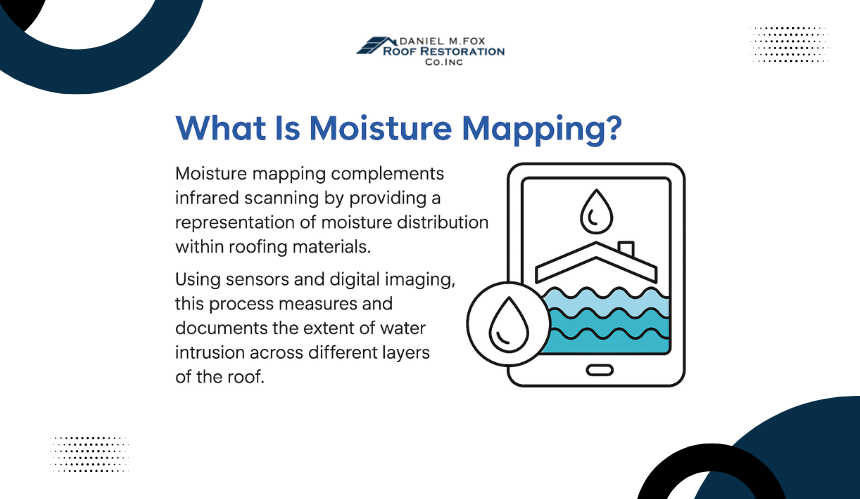

Moisture mapping complements infrared scanning by providing a visual representation of moisture distribution within roofing materials. Using sensors and digital imaging, this process measures and documents the extent of water intrusion across different layers of the roof.
The resulting map highlights precise problem zones, allowing restoration experts to target repairs accurately instead of replacing entire sections.
Why Infrared Scanning and Moisture Mapping Are Essential for Historic Roofs

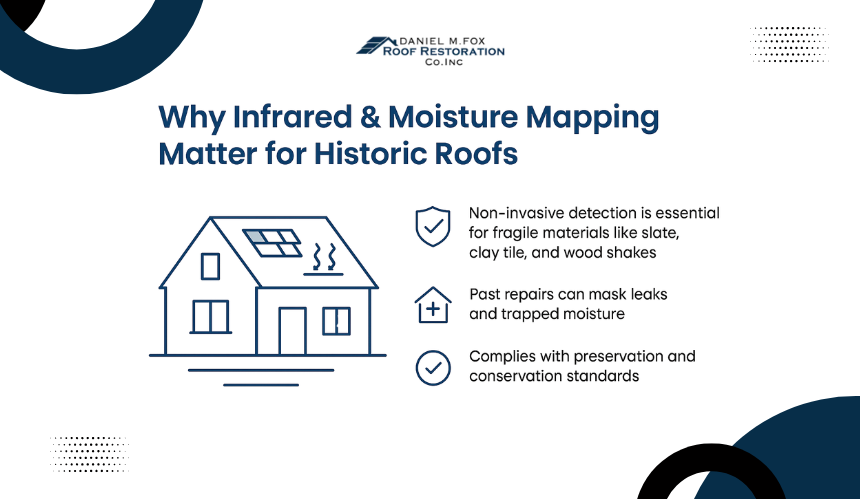

Historic roofs often pose complex challenges that make modern diagnostic tools indispensable. Their materials, such as slate, clay tile, and wood shakes, are fragile and not suitable for traditional invasive inspection methods. Layers of past repairs can also conceal leaks or trapped moisture, leaving visual assessments unreliable.
Infrared scanning and moisture mapping address these limitations by providing non-invasive detection of structural concerns that could compromise both appearance and stability. These methods reveal subtle patterns of heat loss, moisture infiltration, and insulation failure that may develop over decades.
Another key advantage is their alignment with preservation and conservation standards. Many historic buildings are protected under local or federal regulations that restrict intrusive testing. Infrared and moisture analysis comply with these standards while still offering accurate diagnostic insights.
By incorporating these technologies, restoration teams gain a complete understanding of roof performance, allowing them to plan targeted, minimally invasive repairs that maintain historical authenticity and prevent further deterioration.
How Infrared Scanning and Moisture Mapping Work Together

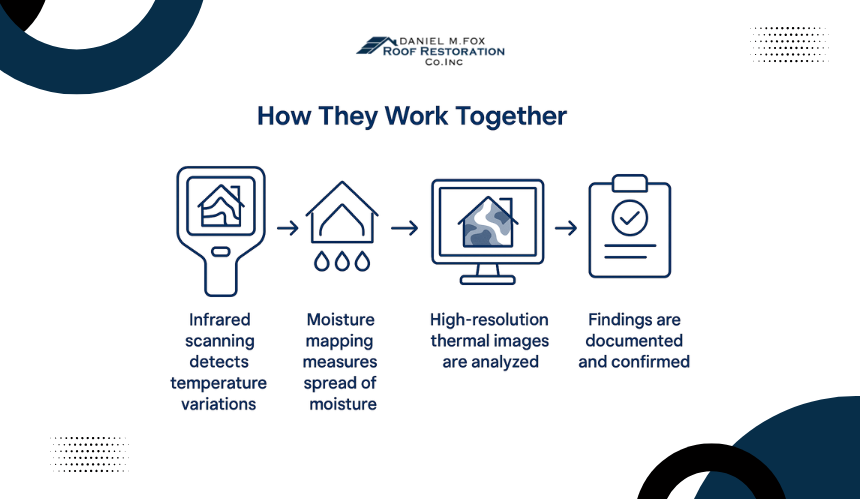

Although both techniques function independently, their combination delivers the most complete assessment of a roof’s internal condition. Infrared scanning first detects temperature variations across the roof surface, highlighting irregularities that may signal underlying moisture or damaged insulation. Moisture mapping then measures and visualizes the exact spread of that moisture, confirming whether the thermal patterns indicate genuine water intrusion.
The process begins with the capture of high-resolution thermal images under controlled environmental conditions. These images are analyzed to identify temperature anomalies, followed by precise moisture readings that document the extent and depth of each affected zone.
Together, these diagnostic methods form a comprehensive analytical framework for decision-making. They ensure accuracy in identifying issues and help a historic roofing expert develop cost-efficient, evidence-based restoration plans.
This integration eliminates guesswork, improves long-term maintenance planning, and ensures that every intervention is guided by reliable, data-supported findings.
Step-by-Step Process of Infrared and Moisture Scanning for Historic Roofs
Inspecting historic roofs with modern imaging technology requires precision, controlled conditions, and compliance with established preservation standards.
Every step in the process is designed to capture accurate data without compromising delicate materials or original craftsmanship.
1. Preliminary Roof Assessment
Before any scanning begins, inspectors perform a surface-level review of the structure’s age, roofing material, and environmental exposure. This evaluation determines the best approach for infrared thermography for roof inspections, ensuring optimal conditions for temperature contrast and accurate readings.
2. Thermal Imaging Data Capture
Specialized infrared cameras are used to conduct roof envelope analysis using infrared technology. The devices measure variations in surface temperature that may indicate hidden leaks, trapped moisture, or insulation defects. The thermal images collected at this stage form the foundation for accurate interpretation.
3. Moisture Verification and Mapping
Once anomalies are detected, moisture mapping tools identify the extent of hidden moisture beneath roofing materials. This step confirms whether detected heat signatures are related to actual water intrusion or other thermal inconsistencies.
The result is a detailed visualization that supports moisture mapping in historic building preservation, guiding where restoration is truly needed.
4. Analysis and Cross-Referencing
Data from both infrared and moisture scans are compared to rule out false readings. Professionals interpret the results according to infrared roof inspection standards and best practices, which prioritize accuracy and preservation integrity. This ensures that every decision is backed by verifiable data rather than assumptions.
5.Report Generation and Preservation Planning
The final report outlines findings such as energy loss and heat signature mapping in roofs, areas of moisture concentration, and insulation gaps. These insights allow restoration teams to implement non-invasive diagnostic tools for roof assessment in future maintenance plans.
Early documentation of these conditions also supports early moisture detection in heritage structures, preventing costly repairs later on.
Common Issues Detected in Historic Roof Structures

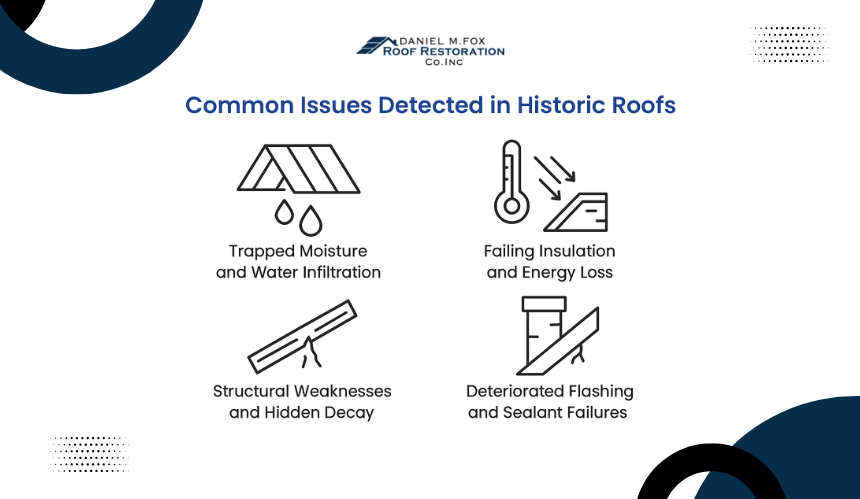

Infrared scanning and moisture mapping reveal complex issues that are often hidden beneath the surface of historic roofs.
Using thermal imaging, roof leak detection, and other advanced diagnostic tools, inspectors can identify a wide range of concerns that traditional methods might overlook.
1. Trapped Moisture and Water Infiltration
One of the most frequent discoveries in heritage properties is trapped moisture beneath roofing materials. Over time, water may seep into insulation or wood decking through cracked tiles or deteriorated flashing. Moisture mapping exposes these concealed areas, helping restoration experts address the source before it spreads further.
2. Failing Insulation and Energy Loss
Older buildings often suffer from inadequate insulation, which causes temperature imbalances and unnecessary heat transfer. Energy loss and heat signature mapping in roofs through infrared thermography highlights where insulation has degraded or settled unevenly, allowing for precise upgrades that improve comfort and energy efficiency without altering original materials.
3. Structural Weaknesses and Hidden Decay
Long-term exposure to moisture leads to weakened rafters, rotting sheathing, and rusted fasteners. Infrared thermography for roof inspections detects these anomalies early, making it possible to reinforce compromised areas before they lead to major structural damage.
4. Deteriorated Flashing and Sealant Failures
Flashing failures are common in older roofs, especially around chimneys and valleys. Thermal imaging and moisture mapping reveal subtle leaks forming around these joints, ensuring repairs are done in specific zones rather than through full replacements.
5. Layered or Incompatible Repair Materials
Historic roofs often have multiple generations of repair work layered over each other. Incompatible materials, such as modern membranes combined with clay tiles, can trap moisture or restrict airflow. Preservation-grade infrared inspection methods help uncover these problematic layers and guide restoration teams toward solutions that respect the original design.
Frequently Asked Questions
Can infrared scanning detect roof issues in cold or cloudy weather?
Infrared scanning can still be performed in cooler or overcast conditions, but professionals usually schedule inspections when there is enough temperature difference between the roof surface and the surrounding air. This ensures better visibility of thermal patterns for accurate results.
How often should heritage properties schedule roof imaging assessments?
For historic structures, roof imaging should ideally be performed every two to three years or after major weather events. Regular thermal scans help track changes in roof performance over time and prevent small issues from developing into larger restoration needs.
Are drone-based infrared inspections reliable for historic buildings?
Yes. Drone-assisted thermography provides safe, detailed imaging for hard-to-reach roof areas without risking damage to fragile materials. This modern approach improves data precision while reducing manual access requirements.
Can moisture mapping help identify interior ceiling damage caused by roof leaks?
Absolutely. Moisture mapping can trace the path of water infiltration from the roof surface down to interior structures. This helps restoration teams determine whether ceiling stains or plaster deterioration originate from roof moisture or other sources.
What certifications should a specialist have for heritage roof diagnostics?
A qualified historic roofing expert should hold credentials such as Level I or Level II Thermography Certification and experience in heritage preservation. These ensure accurate readings, proper data interpretation, and adherence to conservation standards.
How do thermal roof scans contribute to sustainability goals?
Infrared inspections identify areas of energy loss, helping property owners improve insulation and reduce heating or cooling demands. This contributes to more sustainable building performance while preserving the architectural integrity of historic properties.
What new technologies are emerging in roof imaging and diagnostics?
Recent innovations include AI-driven image interpretation, 3D thermal modeling, and real-time moisture sensors. These technologies enhance the accuracy and predictive power of inspections, enabling more efficient long-term maintenance planning for historic structures.
